SAE Butt Weld Elbow Pipe

+86-519-88386618

Inquire Now

Product Detail

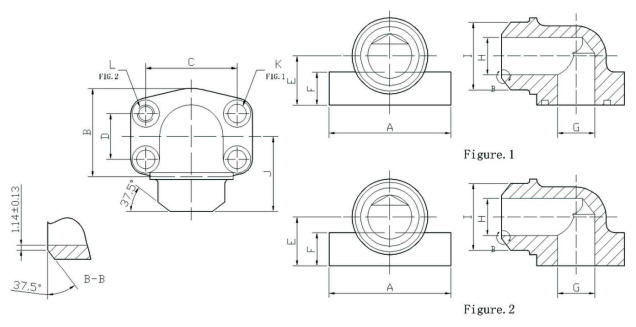

PART NO. O-RING FIG.1	PART NO. FLAT FACE FIG.2	FLANGE SIZE	DIMENSION										SAE		METRIC		WEIGHT	Kg/cm³
PART NO. O-RING FIG.1	PART NO. FLAT FACE FIG.2	FLANGE SIZE	A	B	C	D	E	F	G	H	I	J	K	L (SHCS)	K	L (SHCS)	WEIGHT	Kg/cm³
INCH	3000 PSI (CD61) SAE Butt Weld Elbow Pipe
HY230-61-8-8	HY231-61-8-8	1/2	54.10	43.18	38.10	17.48	20.00	16.00	12.75	13.92	21.34	37.00	8.74	5/16-18×1.25	9	M8×35	0.35	350
HY230-61-12-12	HY231-61-12-12	3/4	65.02	47.04	47.63	22.23	24.00	18.03	19.10	18.90	26.67	38.00	10.31	3/8-16×1.5	11	M10×40	0.51	350
HY230-61-16-16	HY231-61-16-16	1	69.85	51.78	52.37	26.19	28.00	18.03	25.45	24.36	33.40	43.00	10.31	3/8-16×1.5	11	M10×40	0.69	315
HY230-61-20-20	HY231-61-20-2	11/4	79.25	63.75	58.72	30.18	34.00	21.08	31.80	32.51	42.16	51.04	11.91	7/16-14×1.75	11	M10×45	1.24	250
HY230-61-24-24	HY231-61-24-24	11/2	92.96	73.47	69.85	35.71	38.00	24.89	38.15	38.15	48.26	55.00	13.49	1/2-3×1.75	13.5	M12×45	1.69	240
HY230-61-32-32	HY231-61-32-32	2	101.60	84.47	77.77	42.88	42.00	24.89	50.85	49.3	60.33	65.04	13.49	1/2-13×1.75	13.5	M12×45	2.05	240

PART NO. O-RING FIG.1	PART NO. FLAT FACE FIG.2	FLANGE SIZE	DIMENSION										SAE		METRIC		WEIGHT	Kg/cm³
PART NO. O-RING FIG.1	PART NO. FLAT FACE FIG.2	FLANGE SIZE	A	B	C	D	E	F	G	H	I	J	K	L (SHCS)	K	L (SHCS)	WEIGHT	Kg/cm³
INCH	6000 PSI (CD62) SAE Butt Weld Elbow Pipe
HY232-61-8-8	HY233-61-8-8	1/2	54.10	43.18	38.10	17.48	20.00	16.00	12.75	11.84	2136	37.00	8.74	5/16-18×1.25	9	M8×35	0.36	350
HY232-61-12-12	HY233-61-12-12	3/4	65.02	47.04	47.63	22.23	24.00	18.03	19.10	15.60	26.67	38.00	10.31	3/8-16×1.5	11	M10×40	0.52	350
HY232-61-16-16	HY233-61-16-16	1	69.85	51.78	52.37	26.19	28.00	18.03	25.45	20.75	33.40	43.00	10.31	3/8-16×1.5	11	M10×40	0.71	315
HY232-61-20-20	HY233-61-20-20	11/4	79.25	63.75	58.72	30.18	34.00	21.08	31.80	29.51	42.16	51.04	11.91	7/16-14×1.75	11	M10×45	1.27	250
HY232-61-24-24	HY233-61-24-24	11/2	92.96	73.47	69.85	35.71	38.00	24.89	38.15	34.04	48.26	55.00	13.49	1/2-13×1.75	13.5	M12×45	1.73	240
HY232-61-32-32	HY233-61-32-32	2	101.60	84.47	77.77	42.88	42.00	24.89	50.85	42.9	60.33	65.01	13.49	1/2-13×1.75	13.5	M12×45	2.10	240

Notes:

1. Sae standard for 4 bolts, metric standard for 4 bolts.

2. Inside hex bolts.

3. Low-carbon steel.

Stainless Steel 321/304/316L, suffix "ss" added to the part numbers.

4. The welding dimension (OD X Wall Thickness), normally the welding groove is 37.5. The listed items are normal specifications, also can be designed aocording to oustoner's requirements.
