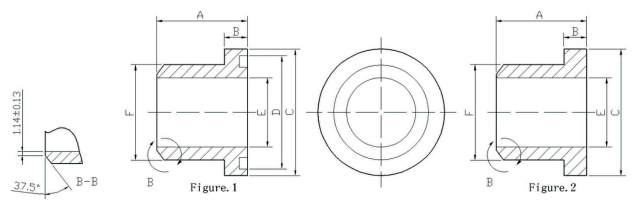

3000 PSI (CD61) SAE Butt Weld FIange Head

HY177-61-8-8

HY177-61-8-8-C

1/2

26.92

6.73

30.18

25.40

13.87

21.34

0.06

350

HY177-61-12-12

HY177-61-12-12-C

3/4

26.92

6.73

38.10

31.75

18.85

26.67

0.08

350

HY177-61-16-16

HY177-61-16-16-C

1

31.75

8.00

44.45

39.62

24.31

33.40

0.15

315

HY177-61-20-20

HY177-61-20-20-C

11/4

36.58

8.00

50.80

44.45

32.46

42.16

0.19

250

HY177-61-24-24

HY177-61-24-24-C

11/2

44.45

8.90

60.33

53.72

38.10

48.26

0.31

200

HY177-61-32-32

HY177-61-32-32-C

2

50.80

9.53

71.43

63.25

49.25

60.33

0.47

200

HY177-61-40-40

HY177-61-40-40-C

21/2

58.67

9.53

84.13

76.07

59.00

73.03

0.77

160

HY177-61-48-48

HY177-61-48-48-C

3

58.67

9.53

101.60

91.82

73.66

88.90

1.04

138

A

B

C

D

E

F

INCH

3000 PSI (CD61) SAE Butt Weld Flange Head

HY178-61-8-8

HY178-61-8-8-C

1/2

26.92

6.73

30.18

25.40

11.79

21.34

0.07

350

HY178-61-12-12

HY178-61-12-12-C

3/4

26.92

6.73

38.10

31.75

15.60

26.67

0.10

350

HY178-61-16-16

HY178-61-16-16-C

1

31.75

8.00

44.45

39.62

20.70

33.40

0.18

315

HY178-61-20-20

HY178-61-20-20-C

11/4

36.58

8.80

50.80

44.45

29.46

42.16

0.23

250

HY178-61-24-24

HY178-61-24-24-C

11/2

44.45

8.80

60.33

53.72

33.96

48.26

0.39

200

HY178-61-32-32

HY178-61-32-32-C

2

50.80

9.53

71.43

63.25

42.90

60.33

0.65

200

HY178-61-40-40

HY178-61-40-40-C

21/2

58.67

9.53

84.13

76.07

53.98

73.03

0.98

160

HY178-61-48-48

HY178-61-48-48-C

3

58.67

9.53

101.60

91.82

66.65

88.90

1.39

138
