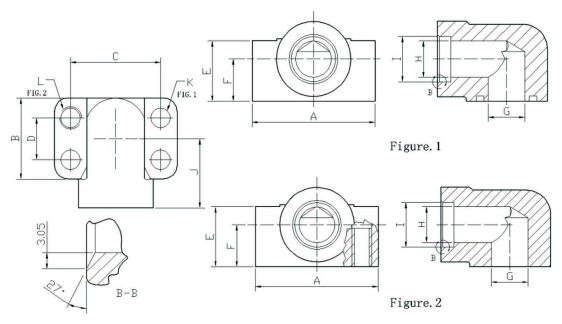

3000 PSI (CD61) SAE Socket Weld Elbow Pipe

HY81-61-12-12

HY82-61-12-12

3/4

65.02

42.93

47.63

22.23

31.75

22.23

19.10

19.05

26.97

36.58

10.31

3/8-16×2

11

M10×50

0.65

350

HY81-61-16-16

HY82-61-16-16

1

69.85

49.28

52.37

26.19

38.10

26.97

25.45

25.40

33.73

42.16

10.31

3/8-16×2.25

11

M10×60

0.93

315

HY81-61-20-20

HY82-61-20-20

11/4

79.25

55.63

58.72

30.18

45.97

30.18

31.80

31.75

42.47

48.51

11.91

7/16-14×2.75

11

M10×70

1.50

250

HY81-61-24-24

HY82-61-24-24

11/2

93.73

65.02

69.85

35.71

50.80

33.32

38.15

38.10

48.82

52.07

13.49

1/2-13×3

13.5

M12×75

1.99

200

HY81-61-32-32

HY82-61-32-32

2

109.98

77.72

77.77

42.88

63.50

42.06

50.85

50.80

61.11

57.91

13.49

1/2-3×3.5

13.5

M12×90

3.24

200

HY81-61-40-40

HY82-61-40-40

21/2

127.00

90.42

88.90

50.80

70.61

48.26

63.55

63.50

73.81

73.15

13.49

1/2-13×5

13.5

M12×125

4.73

160

HY81-61-48-48

HY82-61-48-48

3

139.70

101.60

106.38

61.93

85.49

60.96

76.25

76.20

90.09

76.20

16.66

5/8-11×6

13.5

M16×150

6.50

138

A

B

C

D

E

F

G

H

I

J

K

L (SHCS)

K

L (SHCS)

INCH

6000 PSI (CD62) SAE Socket Weld Elbow Pipe

HY83-62-12-12

HY84-62-12-12

3/4

69.85

49.28

50.80

23.84

38.10

26.97

19.10

19.05

26.97

42.16

10.31

3/8-16×2.25

11

M10×60

1.05

400

HY83-62-16-16

HY84-62-16-16

1

79.25

55.63

57.15

27.76

45.97

30.18

25.45

25.40

33.73

48.51

12.50

7/16-14×2.5

13

M12×65

1.48

400

HY83-62-20-20

HY84-62-20-20

11/4

93.73

65.02

66.68

31.75

50.80

33.32

31.80

31.75

42.47

52.07

13.49

1/2-13×3

15

M14×75

2.20

400

HY83-62-24-24

HY84-62-24-24

11/2

109.98

77.72

79.38

36.50

63.50

42.06

38.15

38.10

48.82

57.91

16.66

5/8-11×3.5

17

M16×90

3.90

400

HY83-62-32-32

HY84-62-32-32

2

127.00

90.42

96.82

44.45

68.33

48.26

50.85

54.80

61.11

73.15

19.84

3/4-10×4.5

21

M20×115

5.20

400
