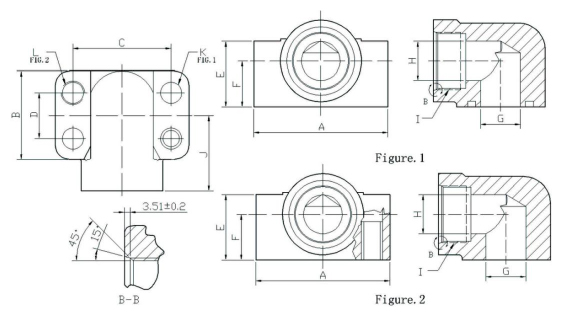

3000 PSI (CD61) SAE Straight Thread Elbow

HY202-61-12-12

HY203-61-12-12

3/4

65.02

42.93

47.63

22.23

31.75

22.23

19.10

19.05

11/16-12

36.58

10.31

3/8-16×2

11

M10×50

0.67

350

HY202-61-16-16

HY203-61-16-16

1

69.85

49.28

52.37

26.19

38.10

26.97

25.45

25.40

15/16-12

42.16

10.31

3/8-16×2.25

11

M10×60

0.91

315

HY202-61-20-20

HY203-61-20-20

11/4

79.25

55.63

58.72

30.18

45.97

30.18

31.80

31.75

15/8-12

48.51

11.91

7/16-14×2.75

11

M10×70

1.55

250

HY202-61-24-24

HY203-61-24-24

11/2

93.73

65.02

69.85

35.71

50.80

33.32

38.15

38.10

17/8-12

52.07

13.49

1/2-13×3

13.5

M12×75

1.88

200

HY202-61-32-32

HY203-61-32-32

2

109.98

77.72

77.77

42.88

63.50

42.06

50.85

50.80

21/2-12

57.91

13.49

1/2-3×3.5

13.5

M12×90

3.13

200

HY202-61-40-40

HY203-61-40-40

21/2

127.00

90.42

88.90

50.80

70.61

48.26

63.55

63.50

3-12

73.15

13.49

1/2-13×5

13.5

M12×125

4.92

160

A

B

C

D

E

F

G

H

I (UN)

J

K

L (SHCS)

K

L (SHCS)

INCH

6000 PSI (CD62) SAE Straight Thread Elbow

HY204-62-12-12

HY205-62-12-12

3/4

69.85

49.28

50.80

23.84

38.10

26.97

19.10

19.05

11/16-12

42.16

10.31

3/8-16×2.25

11

M10×60

1.03

400

HY204-62-16-16

HY205-62-16-16

1

79.25

55.63

57.15

27.76

45.97

30.18

25.45

25.40

15/16-12

48.51

12.50

7/16-14×2.5

13

M12×65

1.51

400

HY204-62-20-20

HY205-62-20-20

11/4

93.73

65.02

66.68

31.75

50.80

33.32

31.80

31.75

15/8-12

52.07

13.49

1/2-13×3

15

M14×75

2.13

400

HY204-62-24-24

HY205-62-24-24

11/2

109.98

77.72

79.38

36.50

63.50

42.06

38.15

38.10

17/8-12

57.91

16.66

5/8-11×3.5

17

M16×90

4.08

400

HY204-62-32-32

HY205-62-32-32

2

127.00

90.42

96.82

44.45

68.33

48.26

50.85

54.80

21/2-12

73.15

19.84

3/4-10×4.5

21

M20×115

5.04

400
