Split Flange Adapters
Split Flange Adapters

Split Flange Adapters

+86-519-88386618
Inquire Now
Product Detail



PART NO.

FLANGE SIZE

FLANGE SIZE

DIMENSION

A

B

C

D (HHCS)

INCH

Sae 3000Pcl

HY390-8-8

1/2

1/2

30.23

37.08

54.10

3/4-16

HY390-8-12

1/2

3/4

38.10

42.16

54.10

3/4-16

HY390-12-12

3/4

3/4

38.10

42.16

54.10

11/16-12

HY390-16-12

1

3/4

38.10

42.16

54.10

15/16-12

HY390-12-16

3/4

1

44.45

45.97

60.20

11/16-12

HY390-16-16

1

1

44.45

45.97

60.20

15/16-12

HY390-20-16

11/4

1

44.45

45.97

60.20

15/8-12

HY390-12-20

3/4

11/4

50.80

52.32

66.55

11/16-12

HY390-16-20

1

11/4

50.80

52.32

66.55

15/16-12

HY390-20-20

11/4

11/4

50.80

52.32

66.55

15/8-12

HY390-24-20

11/2

11/4

50.80

52.32

66.55

17/8-12

HY390-12-24

3/4

11/2

60.33

59.18

80.01

11/16-12

HY390-16-24

1

11/2

60.33

59.18

80.01

15/16-12

HY390-20-24

11/4

11/2

60.33

59.18

80.01

15/8-12

HY390-24-24

11/2

11/2

60.33

59.18

80.01

17/8-12

HY390-32-24

2

11/2

60.33

65.53

80.01

21/2-12

HY390-24-32

11/2

2

71.42

77.72

107.95

17/8-12

HY390-32-32

2

2

71.42

77.72

107.95

21/2-12

HY390-32-40

2

21/2

84.12

77.72

107.95

21/2-12


PART NO.

FLANGE SIZE

FLANGE SIZE

DIMENSION

A

B

C

D (HHCS)

INCH

Sae 6000Pcl

HY394-12-12

3/4

3/4

38.10

42.16

54.10

1 3/16-12

HY394-16-12

1

3/4

38.10

42.16

54.10

1 7/16-12

HY394-12-16

3/4

1

44.45

45.97

60.20

1 3/16-12

HY394-16-16

1

1

44.45

45.97

60.20

1 7/16-12

HY394-20-16

11/4

1

44.45

45.97

60.20

1 11/16-12

HY394-16-20

1

11/4

50.80

52.32

66.55

1 7/16-12

HY394-20-20

11/4

11/4

50.80

52.32

66.55

1 11/16-12

HY394-24-20

11/2

11/4

50.80

52.32

66.55

2-12

HY394-20-24

11/4

11/2

60.33

59.18

80.01

1 11/16-12

HY394-24-24

11/2

11/2

60.33

59.18

80.01

2-12

HY394-24-32

11/2

2

71.42

77.72

107.95

2-12

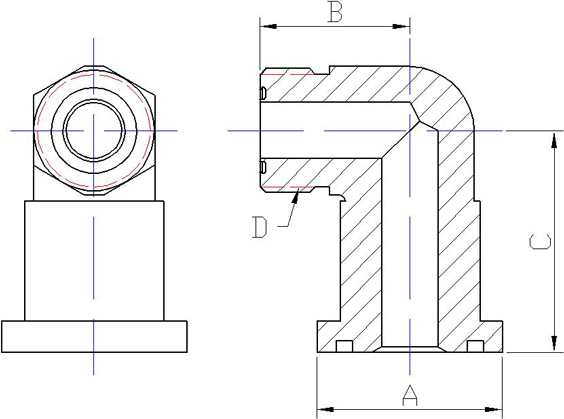

90° JIC THERAD

PART NO.

FLANGE SIZE

FLANGE SIZE

DIMENSION

A

B

C

D (HHCS)

INCH

Sae 3000Pcl

HY690-8-8

1/2

1/2

31.75

37.08

54.10

3/4-16

HY690-12-12

3/4

3/4

41.28

42.16

54.10

11/16-12

HY690-16-12

1

3/4

41.28

42.16

54.10

15/16-12

HY690-12-16

3/4

1

47.63

45.97

60.20

11/16-12

HY690-16-16

1

1

47.63

45.97

60.20

15/16-12

HY690-20-16

11/4

1

47.63

45.97

60.20

15/8-12

HY690-16-20

1

11/4

53.98

52.32

70.10

15/16-12

HY690-20-20

11/4

11/4

53.98

52.32

70.10

15/8-12

HY690-24-20

11/2

11/4

53.98

55.63

70.10

17/8-12

HY690-20-24

11/4

11/2

63.50

59.18

80.01

15/8-12

HY690-24-24

11/2

11/2

63.50

59.18

80.01

17/8-12

HY690-32-24

2

11/2

63.50

77.72

107.95

21/2-12

HY690-24-32

11/2

2

79.38

77.72

107.95

17/8-12

HY690-32-32

2

2

79.38

77.72

107.95

21/2-12

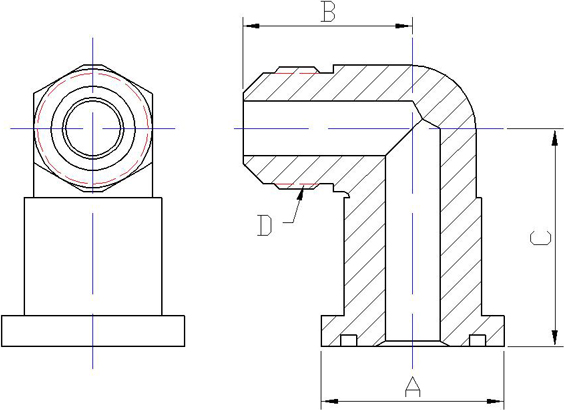

90° ORFS THERAD

PART NO.

FLANGE SIZE

FLANGE SIZE

DIMENSION

A

B

C

D (HHCS)

INCH

Sae 6000Pcl

HY694-12-8

3/4

1/2

31.75

42.16

54.10

13/16-12

HY694-12-12

3/4

3/4

41.28

42.16

54.10

13/16-12

HY694-16-12

1

3/4

41.28

42.16

54.10

17/16-12

HY694-12-16

3/4

1

47.63

45.97

60.20

13/16-12

HY694-16-16

1

1

47.63

45.97

60.20

17/16-12

HY694-20-16

11/4

1

47.63

45.97

60.20

111/16-12

HY694-16-20

1

11/4

53.98

52.32

70.10

17/16-12

HY694-20-20

11/4

11/4

53.98

52.32

70.10

111/16-12

HY694-24-20

11/2

11/4

53.98

52.32

7t.1t

21/2-12

HY694-20-24

11/4

11/2

63.50

59.18

80.01

111/16-12

HY694-24-24

11/2

11/2

63.50

59.18

80.01

17-12

HY694-24-32

11/2

2

79.38

77.72

107.95

2-12
